EDG VR 85 Fieldscope

INTRODUCING EDG VR
The Next Generation Has Arrived

The new EDG VR 85 Fieldscope—the world’s first Fieldscope featuring Nikon’s lens-shift type VR (Vibration Reduction) system^†—will change the way you see the world. Based on the technologies developed for NIKKOR VR lenses, the new EDG VR 85 Fieldscope reduces image vibrations and blur during observation to approx. 1/8 and an equivalent shutter speed of two stops faster in digiscoping.^†^†

Compare

Enlarge

$5,499.95

Product Number: 8273

Authorized Dealers

Supplied Accessories

Make the World Stand Still for Your Enjoyment

Combining Nikon's sophisticated optical technologies with extreme VR (Vibration Reduction) precision has resulted in an optical masterpiece that keeps your viewing world still so you can enjoy the minutest details. With Nikon's superior chromatic-aberration compensation system of ED glass elements with advanced apochromat, field-flattener lens system, advanced multilayer lens and prism coatings and Nikon's original VR system, the new EDG VR 85 is truly a one of a kind Fieldscope for optics connoisseurs and photographers looking for maximum focal length.

EDG VR 85 Sample Images

Observe detail like never before

Nikon VR Technology takes EDG Fieldscope optical superiority to even higher levels

EDG VR (Vibration Reduction) greatly reduces external vibrations caused by wind and the operational vibrations occurring during focusing, panning and tilting on a tripod for a superlative viewing experience. For the first time in the world, Nikon incorporates its lens-shift type VR (Vibration Reduction) system—based on technologies developed for NIKKOR VR lenses—into an EDG Fieldscope.

View More VR On/Off Example Images

Capture a world previously beyond eyes' reach

The most extraordinary digiscoping experience ever created

Capture breathtaking moments at great distances and with great detail. Match up the EDG VR 85 with the optional Nikon FSA-L2 attachment and you can quickly and easily connect to your Nikon D-SLR camera for comfortable shooting and stunning photos and video. The FSA-L2 adapter provides a 3.5x zoom capable of delivering a focal length range from 500mm to 1,750mm (FX Format) or 750mm to 2,625mm (DX Format) with either Metered Manual or Aperture-Priority Auto Mode—previously unheard of magnification in the world of digital photography.

EDG optical quality at its finest

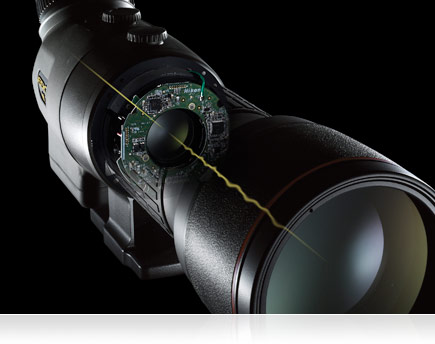

Precise vibration sensing mechanism detects and eliminates image blur

This system uses two independent Angular Velocity sensors to detect pitching (vertical movement) and yawing (horizontal movement). Both sensors then detect diagonal movements. Upon the detection of movement, the sensors then provide instructions to the two Voice Coil Motors (VCM) that command and control the Vibration Reduction optical system to eliminate the shake or blurring. These sensors are capable of detecting movement every 1/1000 second.

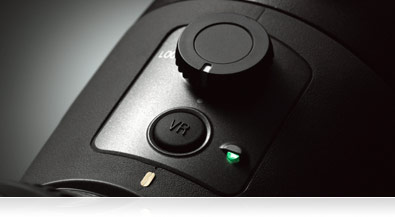

Engineered for simplicity and efficiency

Turning the EDG VR system on is easy—simply turn the VR Lock knob to On mode and press the power button. The green LED indicates that the VR is on. When transporting the EDG VR, turn the knob to the Lock position to mechanically secure the VR optical system for safe transportation.

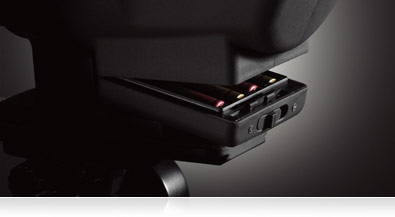

Power to keep you moving

Four AA alkaline batteries power the EDG VR Fieldscope for an incredible 17 hours^†††. Auto Power Off will conserve power and turn the VR system off after 30 minutes. Should the batteries become exhausted and replacements unavailable in the field, the EDG VR can also be used without the VR and function like a standard Fieldscope.

Legendary glass for legendary views

Nikon’s ED (Extra-low Dispersion) glass combines precision with technology for a sharper, clearer and more brilliant field of view. Multilayer coatings on the lenses give bright detailed views, even in low-light conditions.

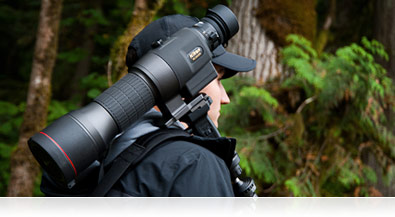

Protection against demanding elements

EDG VR Fieldscopes are designed to withstand the harshest elements. The body and eyepieces are sealed for superior waterproofing performance and filled with nitrogen gas to prevent fogging and condensation due to extreme temperature change.

^†As of October 2011

^†^†Based on Nikon Fieldscope measuring system standard when used in conjunction with a quality tripod

^†^†^†Battery life varies depending on conditions, temperature and vibration

Experience It

Sample Photography

VR On/Off Example Images

*ESP (Estimated Selling Price) listed only as an estimate. Actual prices are set by dealers and are subject to change at any time.

Specifications

Magnification

20-60x

Objective Diameter

85mm

Close Focus Distance

16.5 ft

Relative Brightness

18.5 @ 20x

Eye Relief

18.4mm @ 20x

Size (Length x Width)

14.9 x 4.1 in

Weight

84.66 oz

Waterproof/Fogproof

Yes

Supplied Accessories

Nikon Lens Caps

*ESP (Estimated Selling Price) listed only as an estimate. Actual prices are set by dealers and are subject to change at any time.

**Specifications and equipment are subject to change without any notice or obligation on the part of the manufacturer.
***Refer to the product manual or the Compatible Lenses Specification for additional details.
